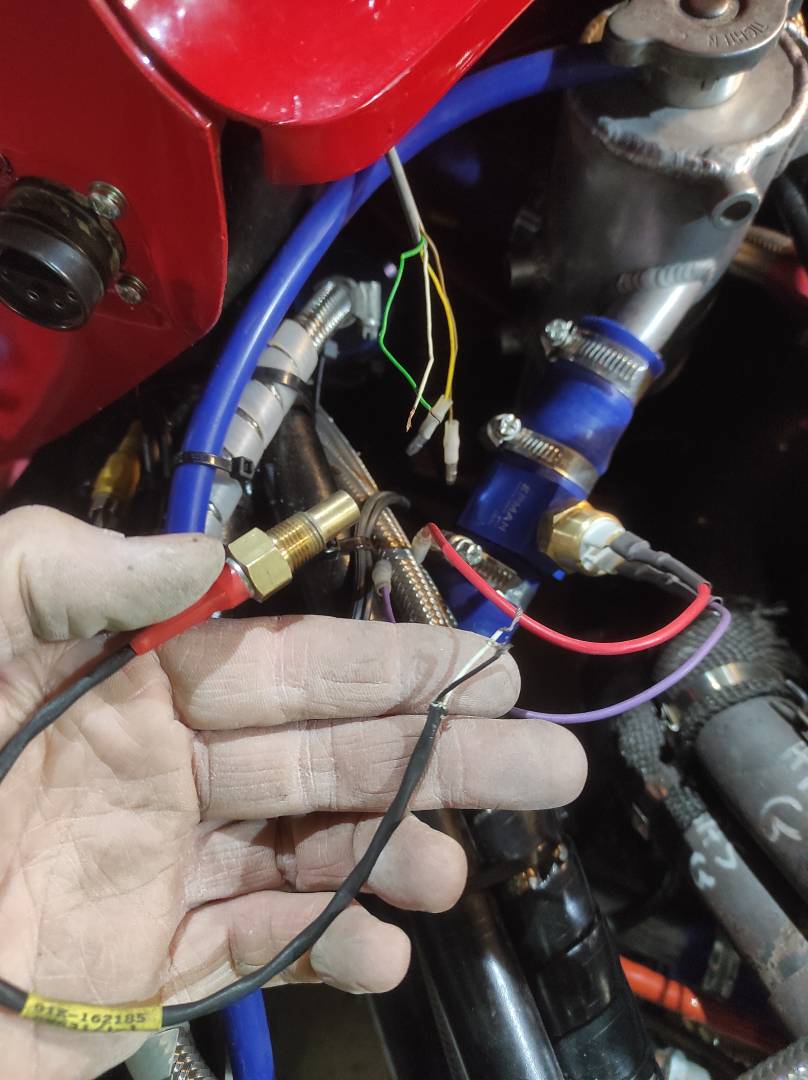

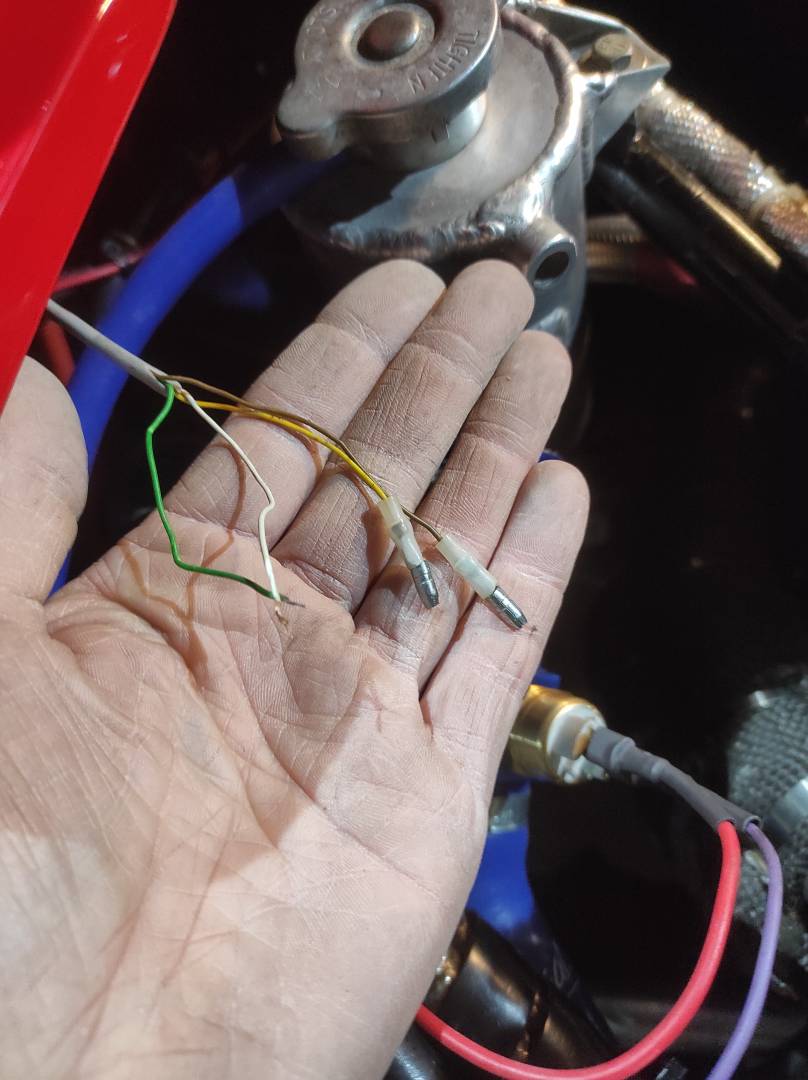

Hello my sr3 haven't anymore the connectors on the coolant sensor and I have standard sensor on hose.

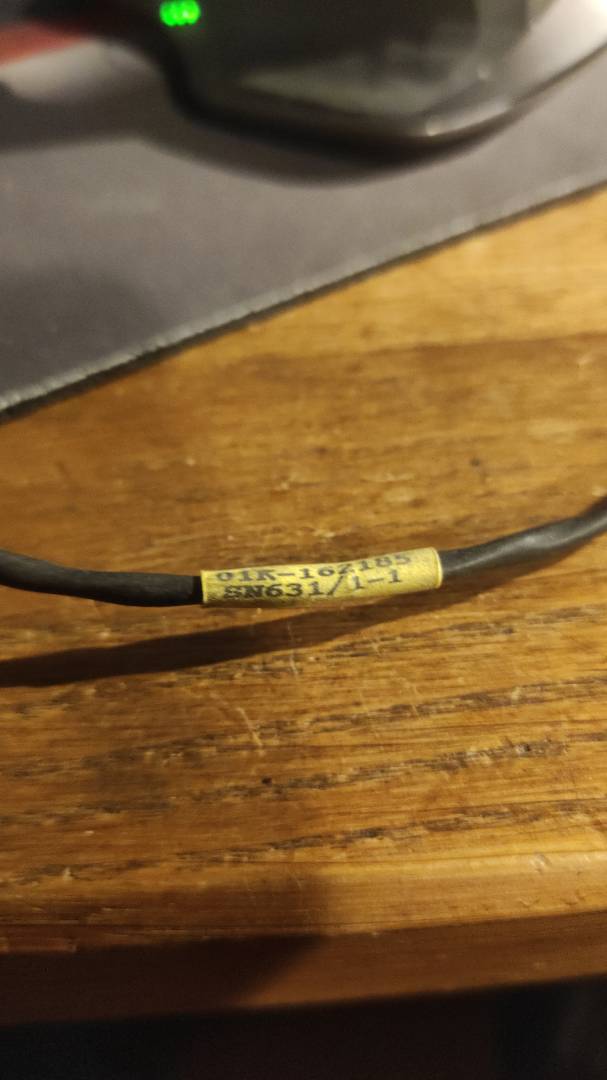

I have too a used sensor 100 ohms I guess it's an original one from aim but have only 2 wires.
Can you help me to connect this sensor or the standard sensor I have? Because I don't know who to connect with who.
Thanks.
Hi I compared the wiring with the oil temp sensor and now i can say that:
wiring side of car wirind side of sensor
yellow----------------------->Red
white------------------------>white
-brown---------------------->black
-green---------------------->blue
I learned too that:
The MXL Strada system doe snot support 2 wire sensor configurations.
The wirings that I have shared is not the conventional AIM wiring .
I will need to add a binder 719 connection to the car side harness to use the Pt100 sensor. If you are not going to add the binder connection then you will need to create a 2000 ohm pull up circuit to replicated the pull up circuit in our PT100 sensor connector before the hardware will work as expected.
