refreshing my first rs3 ( drive shaft)

10 Posts
3 Users
0 Reactions
175 Views
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

Hello Im a new owner of rs3 recently restaured but the owner said they broke the left side drive shaft and replaced it . As they have same age and milleage I suggest to replace the right one too before it brakes.

So I was wondering if there is a cross reference with others cars  or not ? maybe I can replace the complete shaft or only the 2 CV joints only ?

thanks for helping.

Nico (France)

TQ0261 (long)




Quote
Pop Seniwong
(@nseniwong)
Active Member
Joined: 2 years ago
Posts: 6


See attached alternative parts list.






ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

Thanks 👍




ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

On my radical sr3 the ignition coils is a valeo for Renault Twingo




ReplyQuote
Pop Seniwong
(@nseniwong)
Active Member
Joined: 2 years ago
Posts: 6


@nico-fr-18 SR3 uses NGK U2016 (NGK48056) coil pack. This coil pack is also used on Opel Astra (2000-2005).




ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

Ok thanks i will check the reference on mine.




ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

Got this one.

17204j00004




ReplyQuote
Tobias Hugh
(@tobiashugh)
New Member
Joined: 2 weeks ago
Posts: 1


Posted by: @nico-fr-18

Hello Im a new owner of rs3 recently restaured but the owner said they broke the left side drive shaft and replaced it . As they have same age and milleage I suggest to replace the right one too before it brakes.

So I was wondering if there is a cross reference with others cars  or not ? maybe I can replace the complete shaft or only the 2 CV joints only ?

thanks for helping.

Nico (France)

TQ0261 (long)

Replacing the right side proactively makes sense. Check if just the CV joints can be swapped or if a full shaft is needed.




ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

my shafts looks ok they have new cv joints but the right one (the long one) needs   few degrees of rotation before to engage. its hard to explain I will try to find the good words.I see that the tripods 22 teeth are easy to find.

But I dont know witch model of lobro it is (maye ford escort ?) as I didnt removed my transmission shafts yet to check the exacts dimensions to source a correspondance.

Because oem shaft is very expensive...Im surprised nobody tried to find a cross reference.



https://www.oreca-store.com/tripode-gkn-22-cannelures-gi69.html?srsltid=AfmBOoprF8SibLzd2uI1cX2xn7RTVEBOh_0xl9kaNOldw3ZaYRqRpE1-




ReplyQuote
Nicolas ch
(@nico-fr-18)
Eminent Member
Joined: 2 months ago
Posts: 29
Topic starter

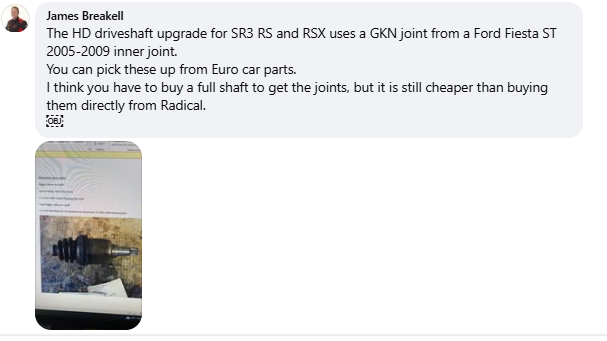

cardan5

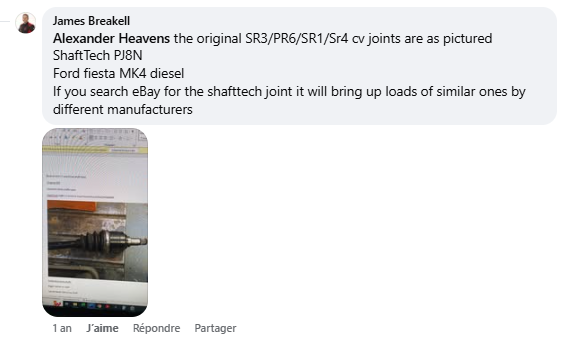

cardan6



ReplyQuote
