Looking for some help here. I accidentally overwrote the sensor settings (water temp, oil temp, pressure) on my MXL Pista. This is for SR3 car 071 with Suzuki ECU.
I was setting up the GPS tracks with GPS Manager & had no problems. I then opened RS2, connected to device, and noticed thst the shift lights were not on so I set those up and turned on GPS timing and speed and transferred this info to the device. Little did I know but I overwrote all the sensor configuration settings. Oh NO! I now realize that I should have received the device settings and saved them. Then I could have cloned this file and made a new one with the adjustments. Unfortunatley I did not do this. I am in a desperate situation as we were planning to race the car this weekend and I have no temperature or pressure readings. Can anyone help me with setting up these sensors? My cell is 405-850-6412.
Thanks, Chris
This may or may not work...
I have a gen 1 sr3 with a gen 2 1340 and a oem suszuki ecu. Attached is my base file my from when I was setting up my Aim.
Thank you Josh. I have saved this file for future reference. Hopefully this will be a resource for someone having these same issues in the future.
Good news! With some help from Jim King, he was able to give me some screen shots of his settings. I was able to use this info & get mine sorted.

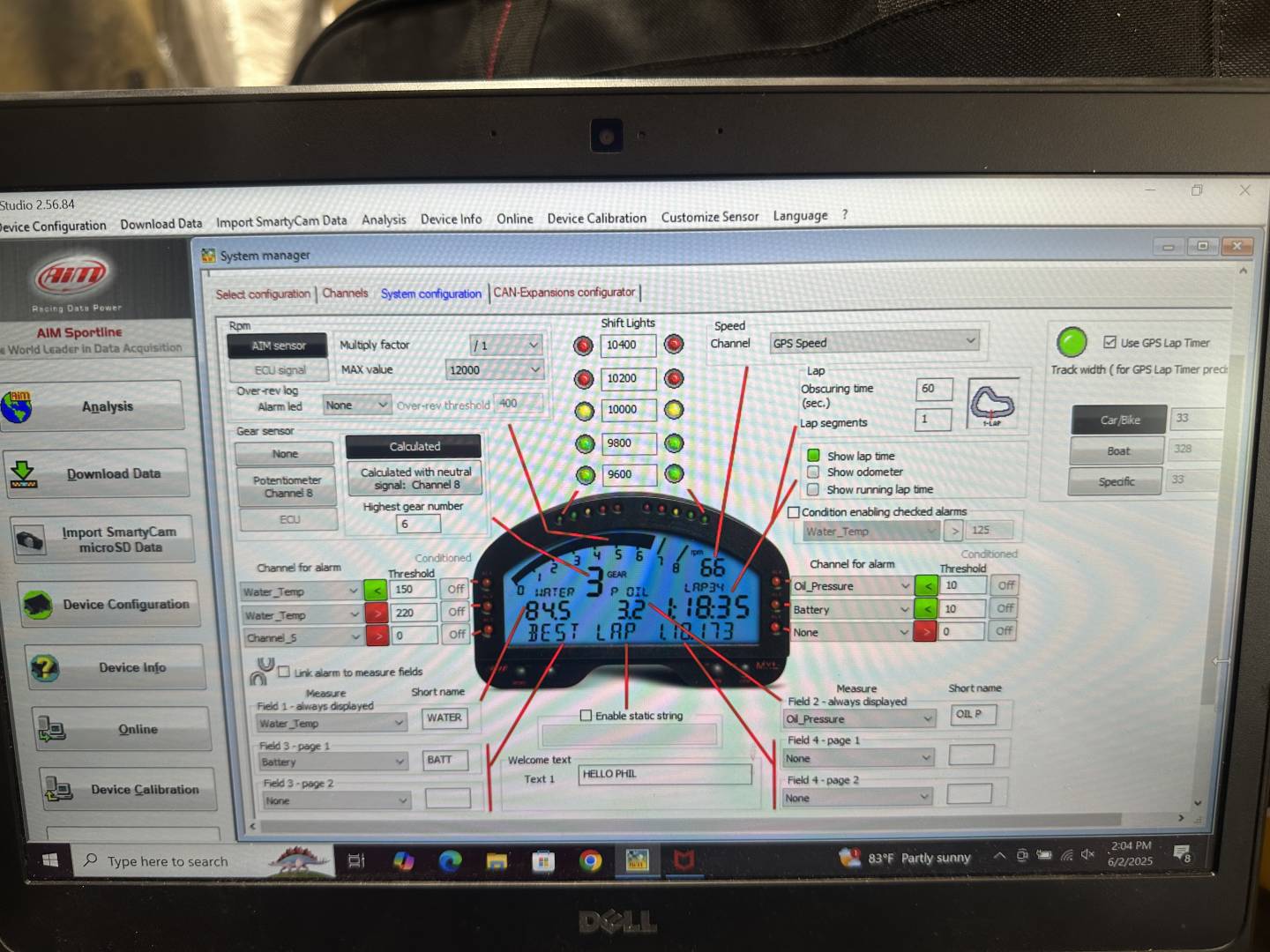

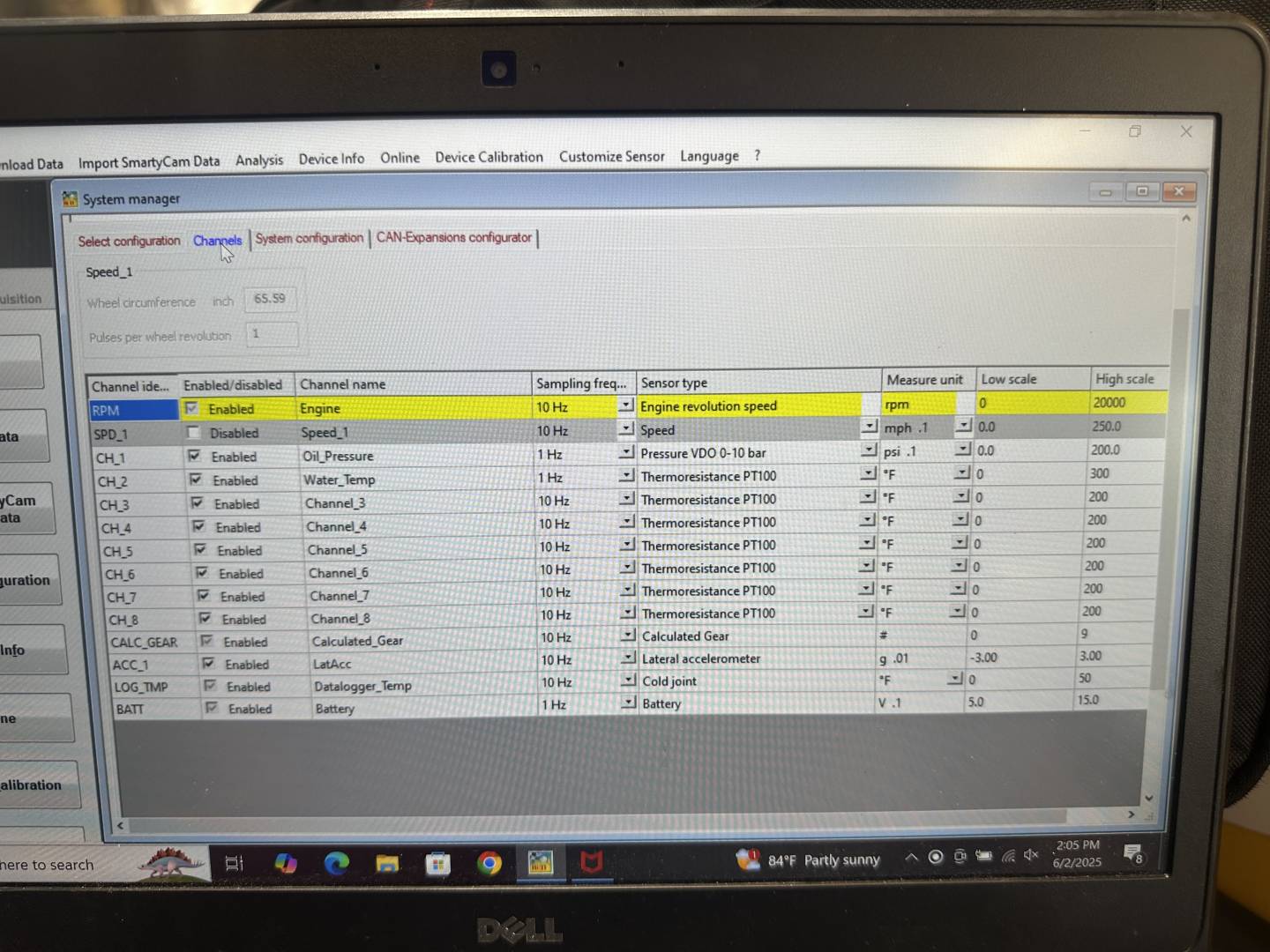

I took some screen shots of my AIM dash and sensor settings (SR3 071 gen 1, gen 1 1300, Suzuki ECU (ECU marked "None" in AIM RS2), wet sump, AIM Pista with GPS-05, lastest firmware for both):
I will see how this works this weekend.
I am surprised to see that this car does not have an oil temp sensor. I will plan to install one at the next oil change. Since it has a wet sump, it shouldn't take quite as long to get the oil up to temp.
Chris
