I'm wondering if this spherical bearing is pressed in? I gave it a few Love taps with a socket and a hammer but it would not come out so I stopped and figured I'd find out before I did something dumb.
There's a circlip you need to remove.... I can see it's 'tabs' in the video (5 o'clock and 7 o'clock positions) but its mostly hidden by all the crud... once that's out... should press/punch out (but they can be tight - suggest some Penetrene)
@rjbender Oh yes, thanks for that Rod.
Have you ever changed these before? I wondering if it gets removed from the side the clip is on? Perhaps there is a ridge inside stopping it from being removed/backing out the opposite direction.
@meatman ... yes - removed a couple recently to get ready to replate some arms. Yes there is a shoulder on the other side that the spherical bearing sits against... it comes out on the same side as the circlip. I used a small hydraulic press and one of them was tighter than the other...
@meatman ... G'day Josh. Sorry but I can't help with that... I'm reusing my old spherical bearings. I suspect they would be a pretty standard supply though... and that most bearing manufacturers would make an equivalent.

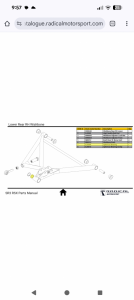

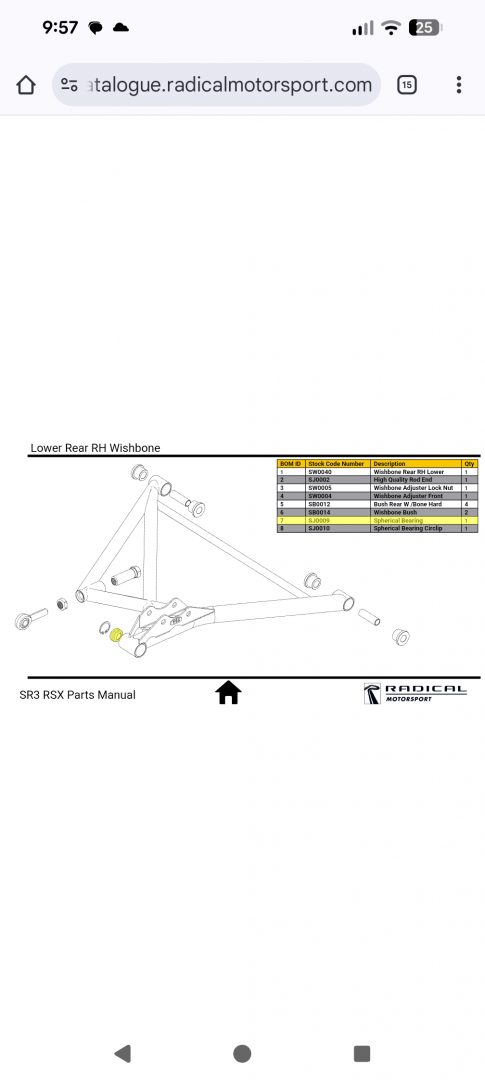

@rjbender no worries, I think I found the correct replacement here...
FYI...

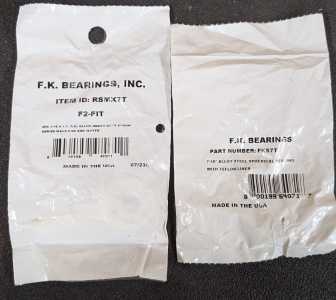

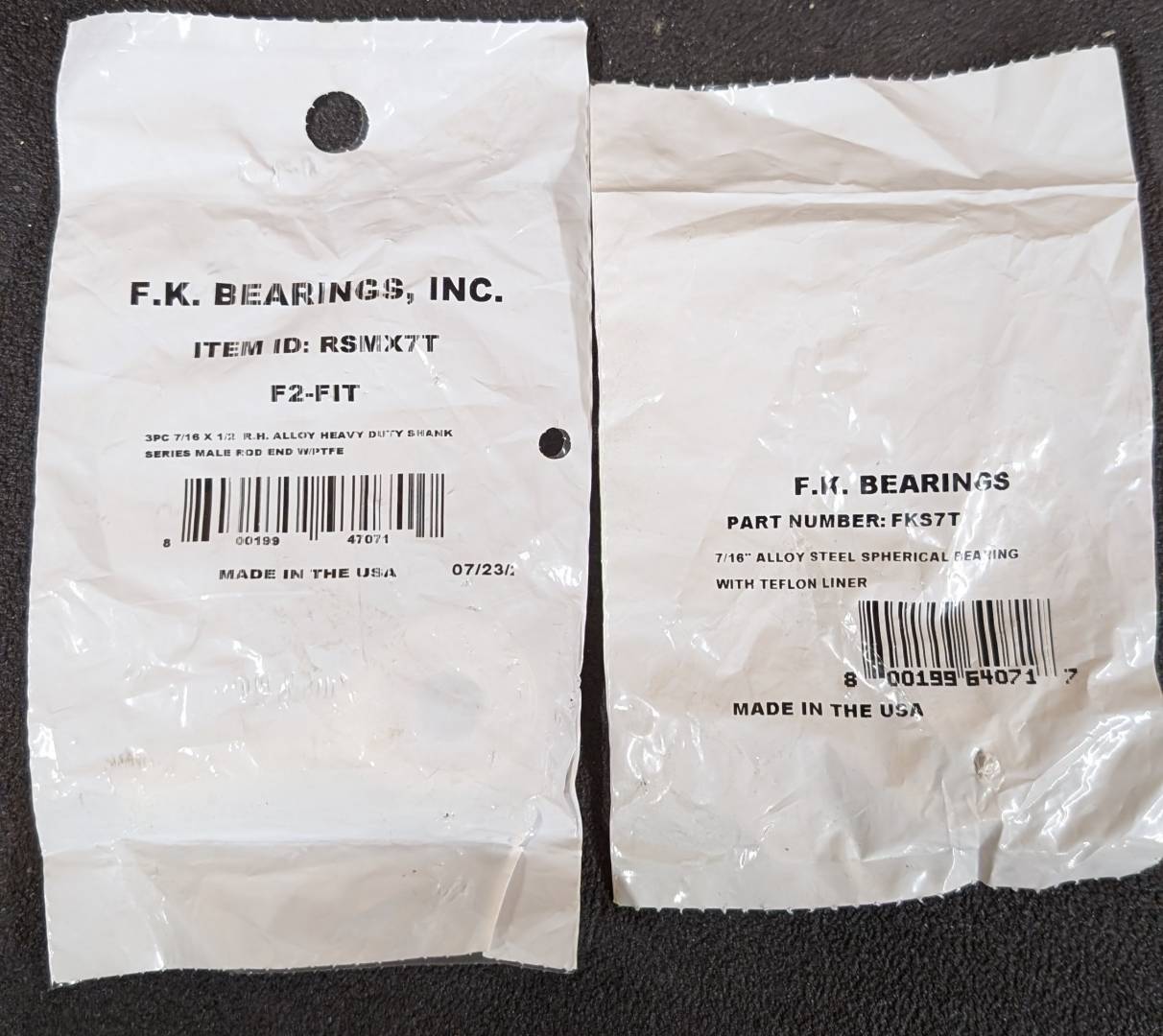

I've sourced quality suspension parts and figure I'd share the part numbers.
Heim joints on the left, spherical bearing on the right.
