Where do I find the following numbers on my new SR3 XX car?
Engine #
Engine Seal #
ECU #
@raider89, One way to get them is to contact the dealer you got the car from and ask them for a copy of the build sheet which will list them all. It is also easy to check them your self. The chassis number is located on a plate that is placed on the firewall just behind the seat. It is right in the center of the firewall. On the XX and the SR10 it is a little difficult to read these because the new seat design is so tall.

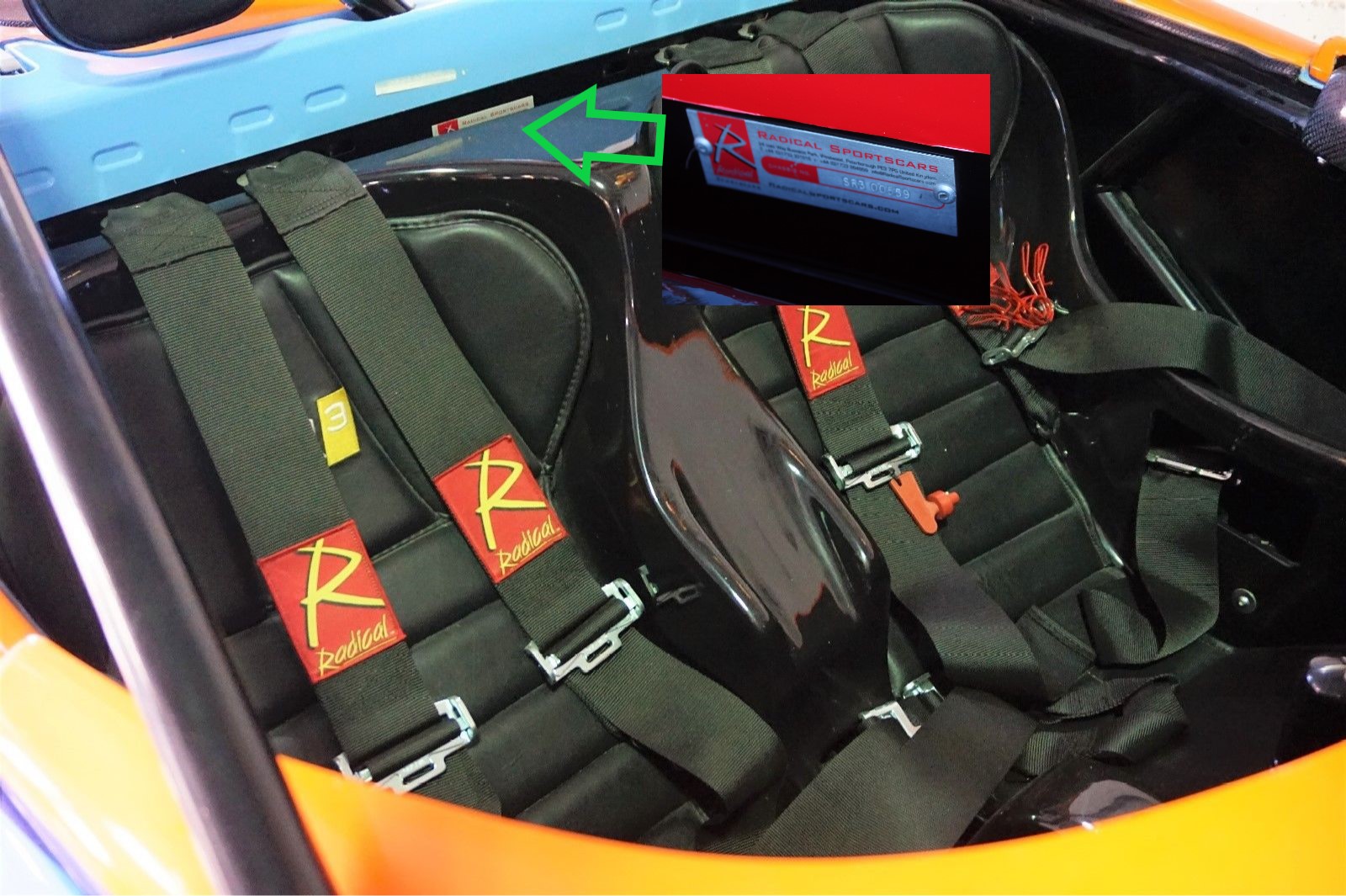

Here is where the chassis number is located.

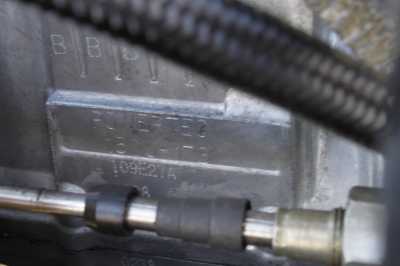

The engine number on your car will be located on a data plate located on the top right side of the engine valve cover. The number is also engraved on the engine block.

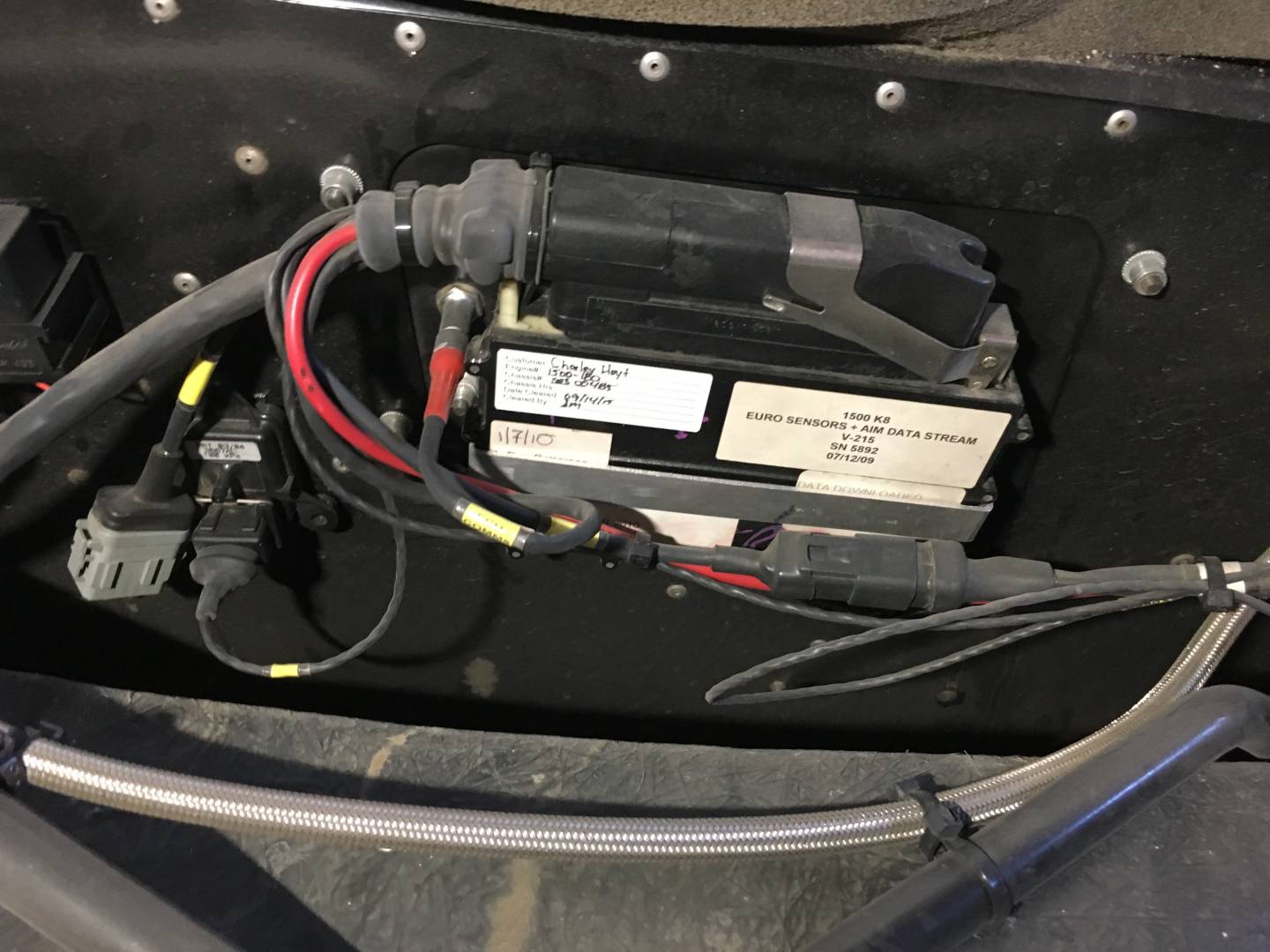

It is a little more challenging to get the ECU serial number. I have never checked one on an XX but I believe the ECU is located in the same position as on the RS and RSX. When you are sitting in the car if you look at the right hand cockpit sidewall you will see a panel that is screwed in. If you remove the screws the ECU is located behind there. Here is a picture of the Life ECU in an RS with the upper bodywork removed. You can see how it is mounted to the access panel.
If you download the ECU data, or connect via PTMON, this will show you your ECU number.
