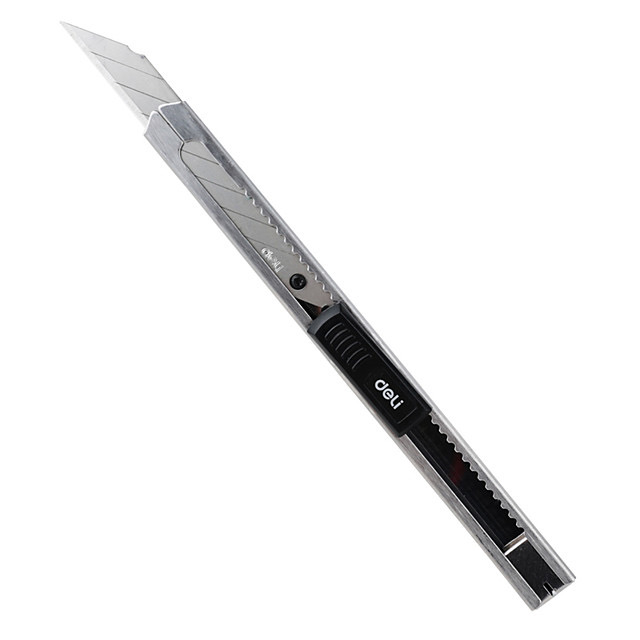

correct! I used a 35mm holesaw to drill it, applying force to it and slow drilling makes this to large/long cutbits.. after opening i vacumed them ut. I basicly used a knife like this, taped to a long stick and carefully cut out a large square all way to the bottom. Then pulling it out 😉
the sensor i used on this tank is 225mm long. That gives you about 0.2mm down to the bottomfloor
Weee! Can finally start putting this bitch together🥰🥰

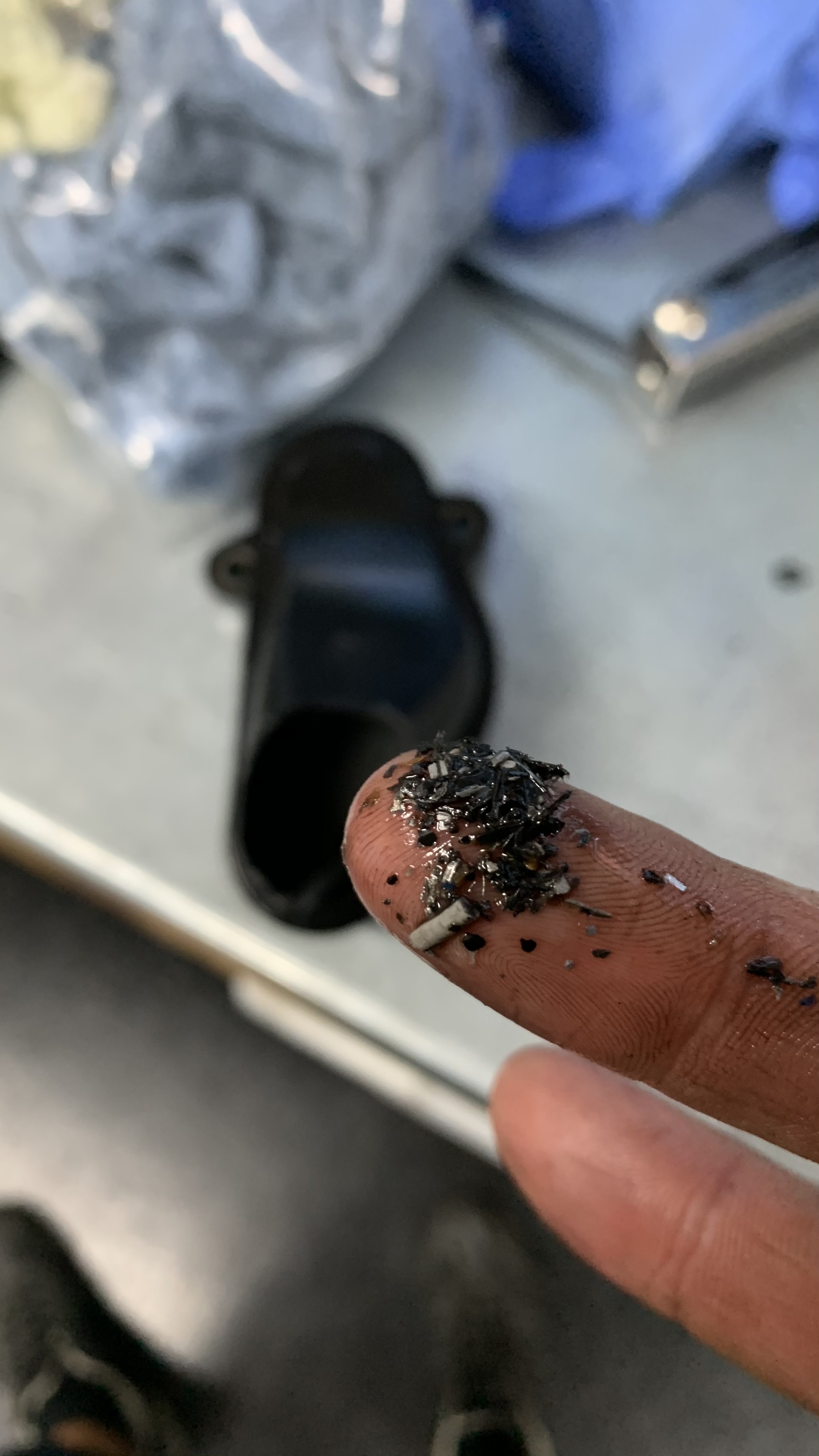

Nice to find this in old oil pickup.. must have been from before my time🤣
putting it together with 1/2" main bolts, CP carillo rods and turbo pistons, think it was 9.5:1 or 9.8:1 not sure now. 2x gen 2 exhaust cams. , adjustable camwheels, 1mm oversize valves.. not ported or modified in any way.
stock rod and crank bearings (not re enforced ones) have bad experience when they start scraping. They damage the crank
680cc injectors. And pumpgas 98octane .
Posted by: @lunaticNice to find this in old oil pickup.. must have been from before my time🤣
Wow! How are you going to make sure it is out of everywhere? I am sure you are checking oiler coolers etc...
@lunatic, If you found that in your engine I would change the oil cooler and make sure all of the lines have been flushed very well. For me it just wouldn’t be worth the risk that some more of that could break loose and work it’s way through the engine.
with that said, you have to realize that I come from an aerospace ‘ aircraft background so I tend to be very conservative and risk averse. 😉
Posted by: @charleyhradicalsportscarregistry-com...with that said, you have to realize that I come from an aerospace ‘ aircraft background so I tend to be very conservative and risk averse. 😉
A certain major US aerospace manufacturer would best take the same approach!
Very interested in following this build.
At the beginning of this year I had my engine rebuilt (a lot of headwork) by a local Hayabusa expert and thinking that Covid wouldn't last long I was just going to throw it back in and get back on track.
However Covid has been around all year so after fitting the engine back in I've sent the whole car back to him to have completely new custom wiring harness + sensors + Motec M150 + Motec PDM15 + Motec C127 installed. It is an '06 chassis with original engine + ecu so im hoping with modern electronics and a modern tune it will pickup some HP yet still be reliable (last build lasted about 200hrs before doing a head gasket).
Kinda wish I had got it turbo'd now (he suggested to ditch the 1500cc and get an oem standard 1340cc bottom end and use my new head). Wanted about 300-320hp.
@benm you have some more pics of your car? 😉 looks neat!

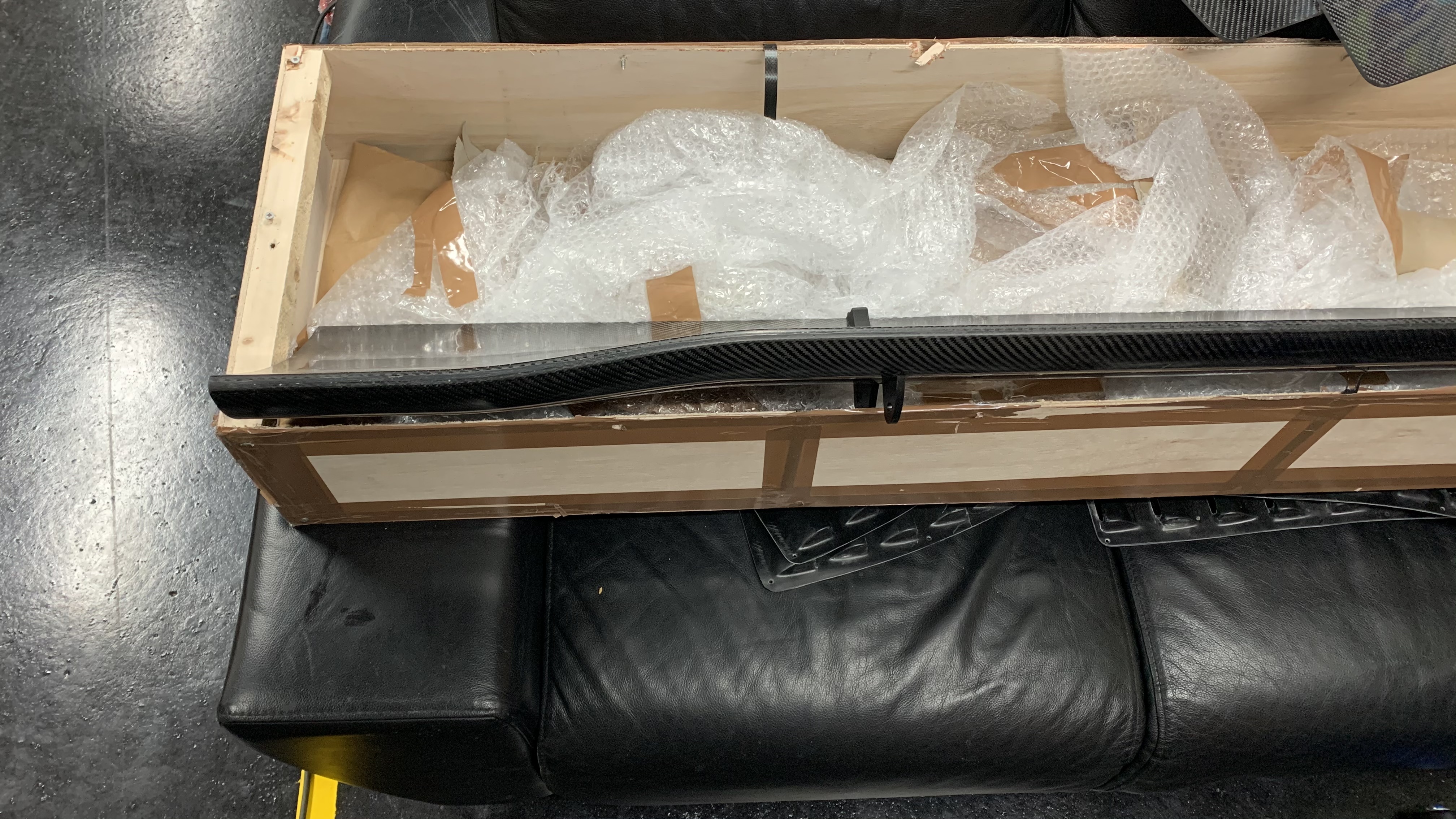

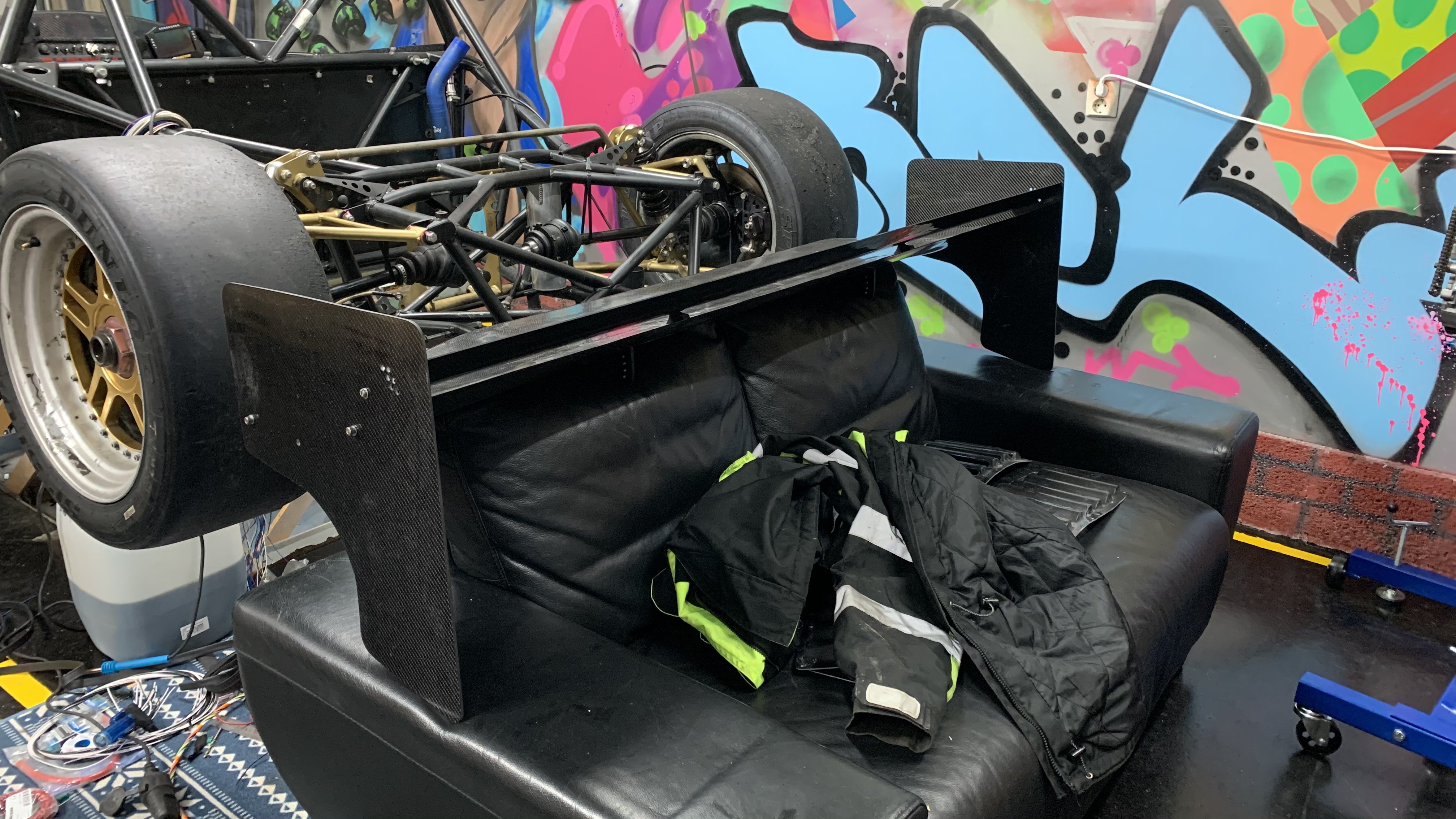

Early christmas! Just received my new wing from carbon composite in uk! Build after my specs to keep it roadlegal! 168cm width
Posted by: @charleyhradicalsportscarregistry-com@benm, That looks like a fun build! What chassis number is it? Is it in the Registry yet?
Charley
It isn't I will have to get those details next time I'm at the mechanics where it is now.
Raceparts comming in daily🤣🤣

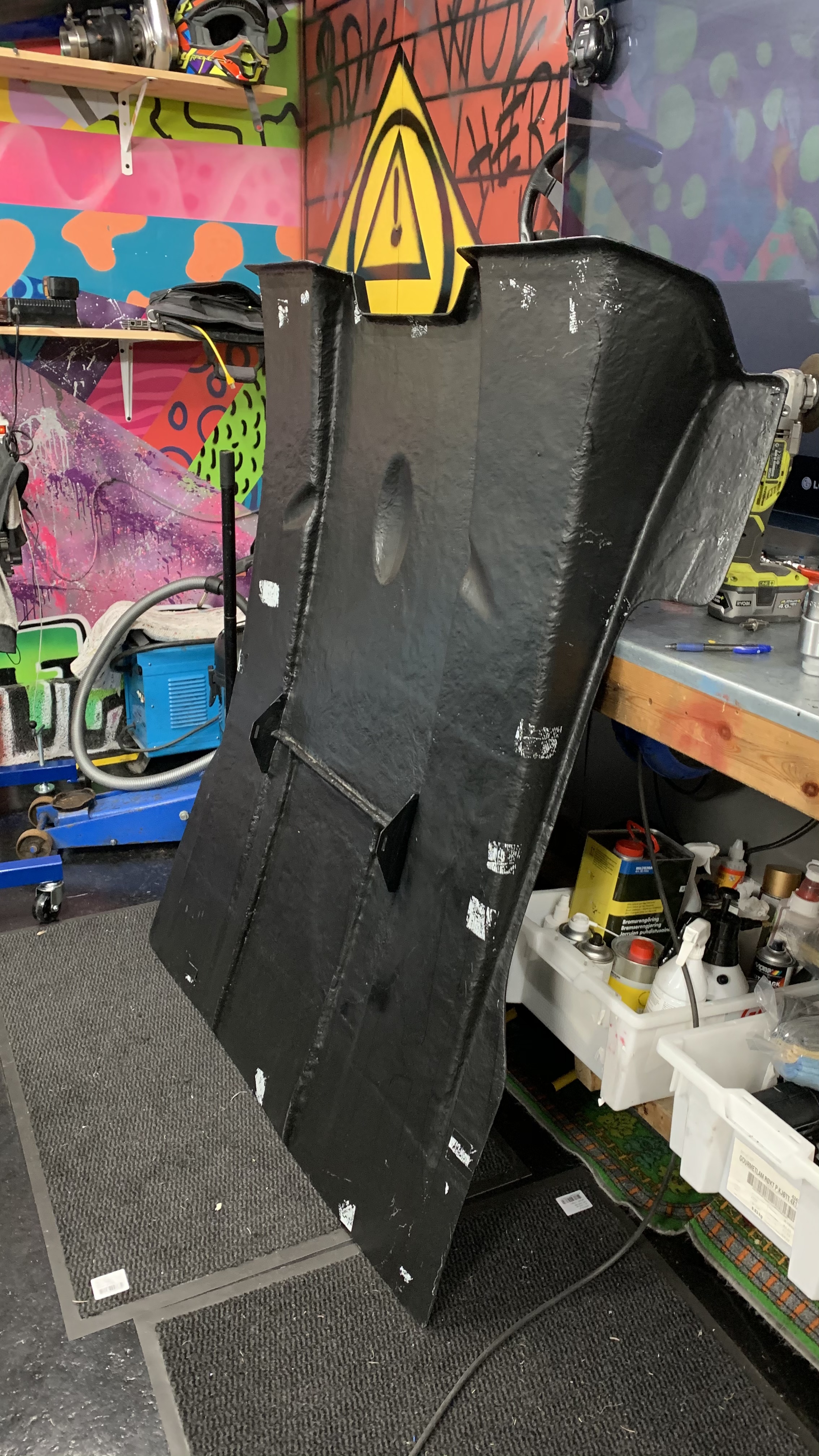

RSX diffuser. Should make this thing fit on to a tracksport😍😍

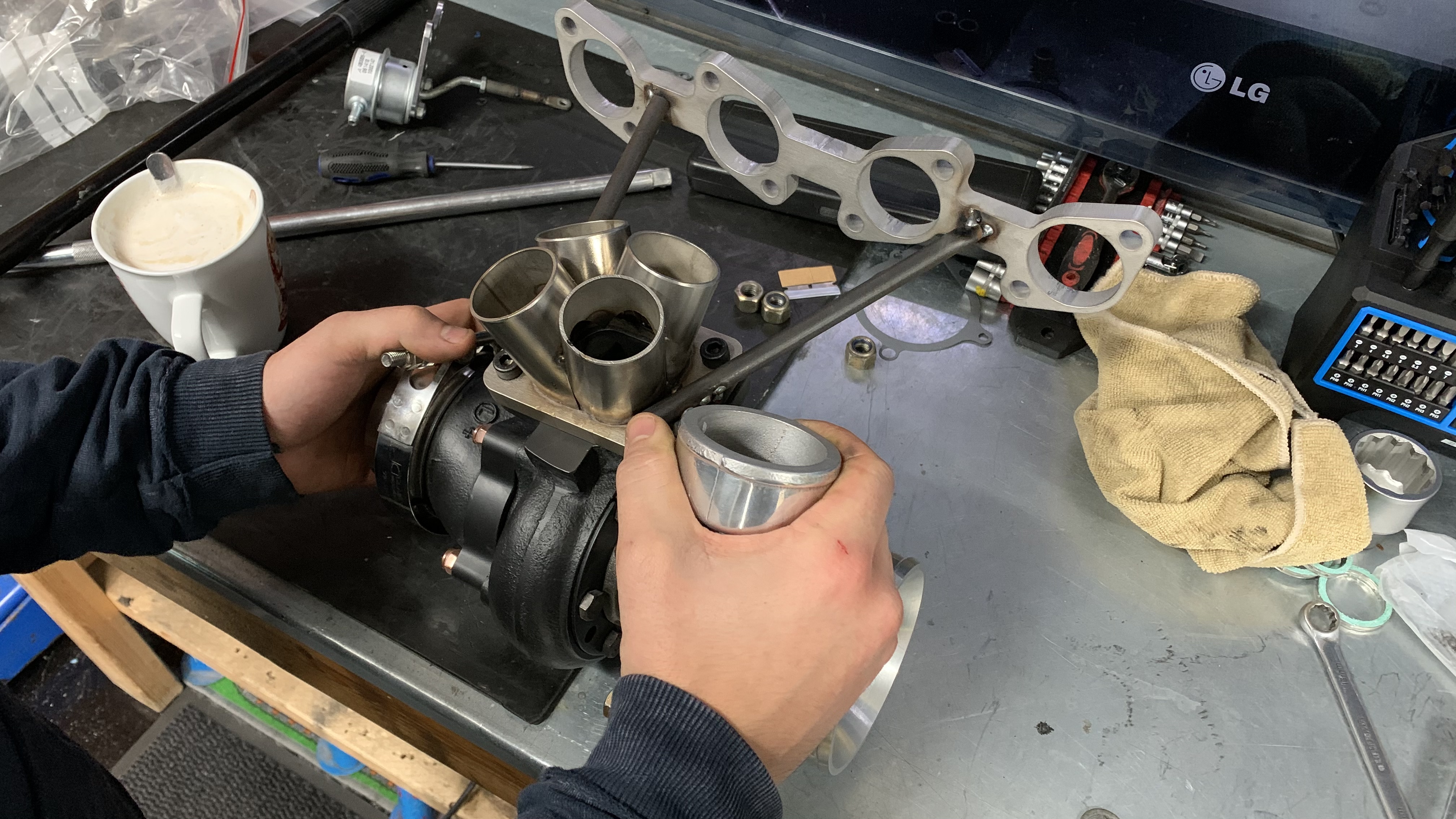

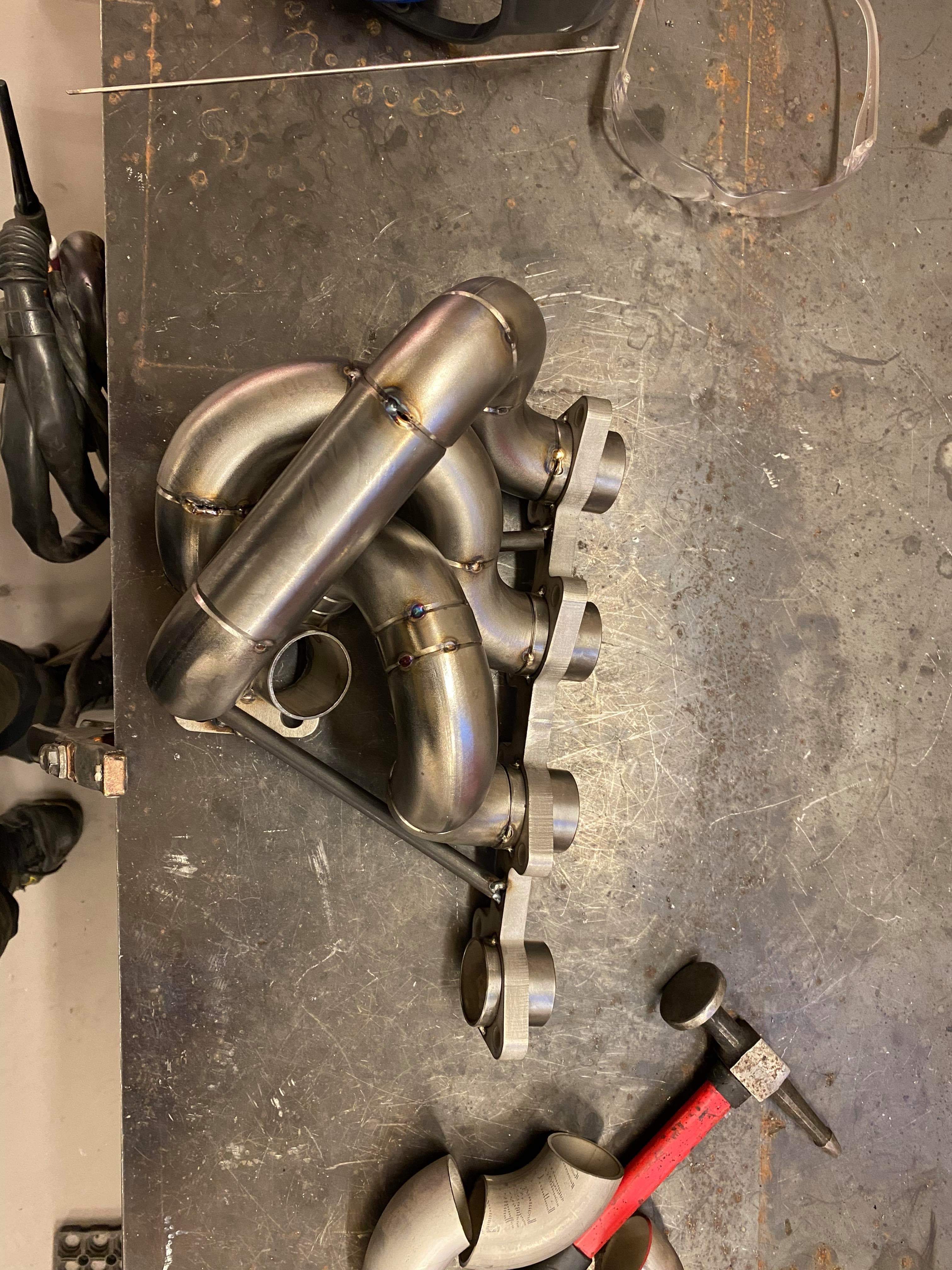

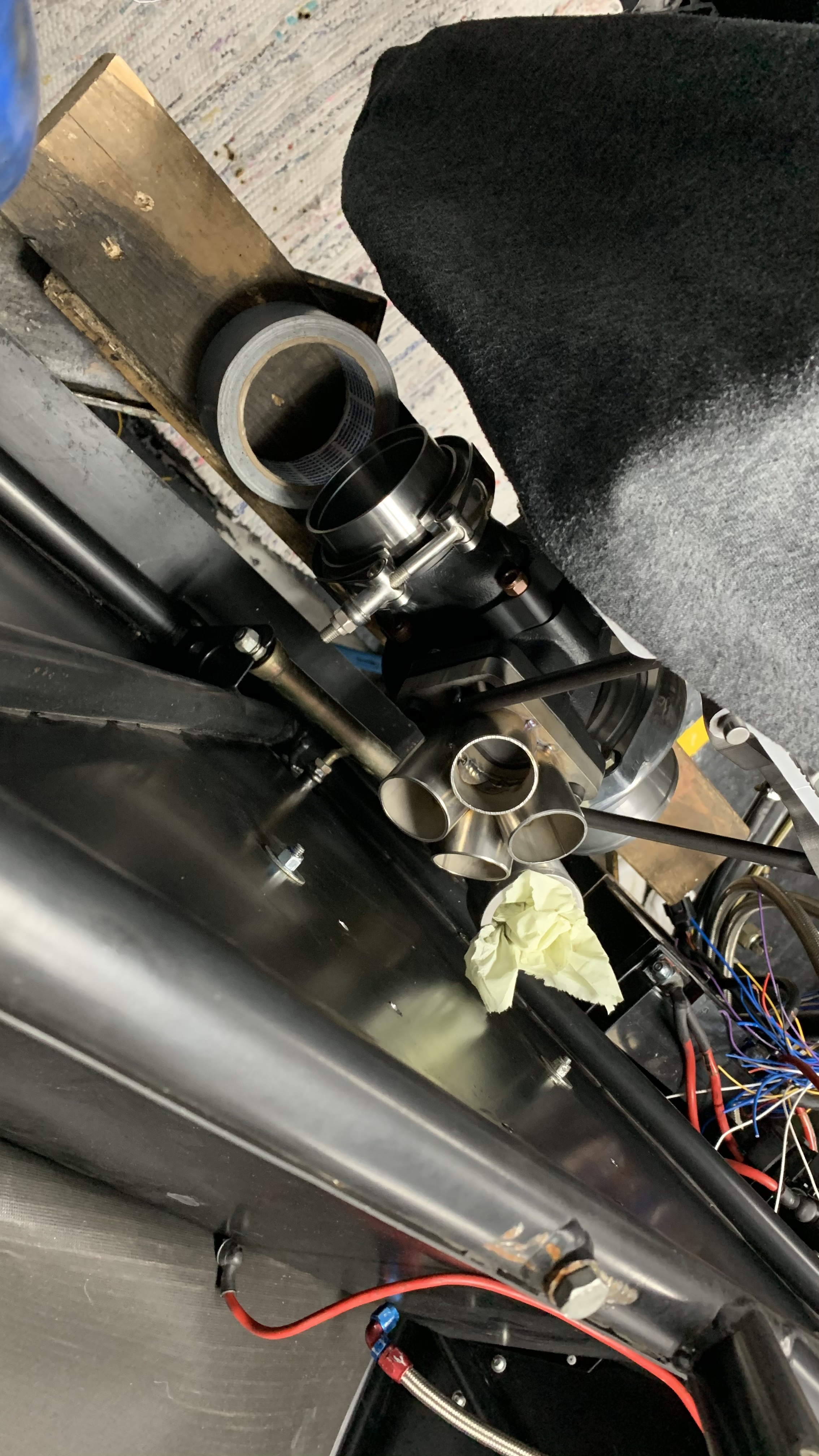

Working on manifold for the gt3076r

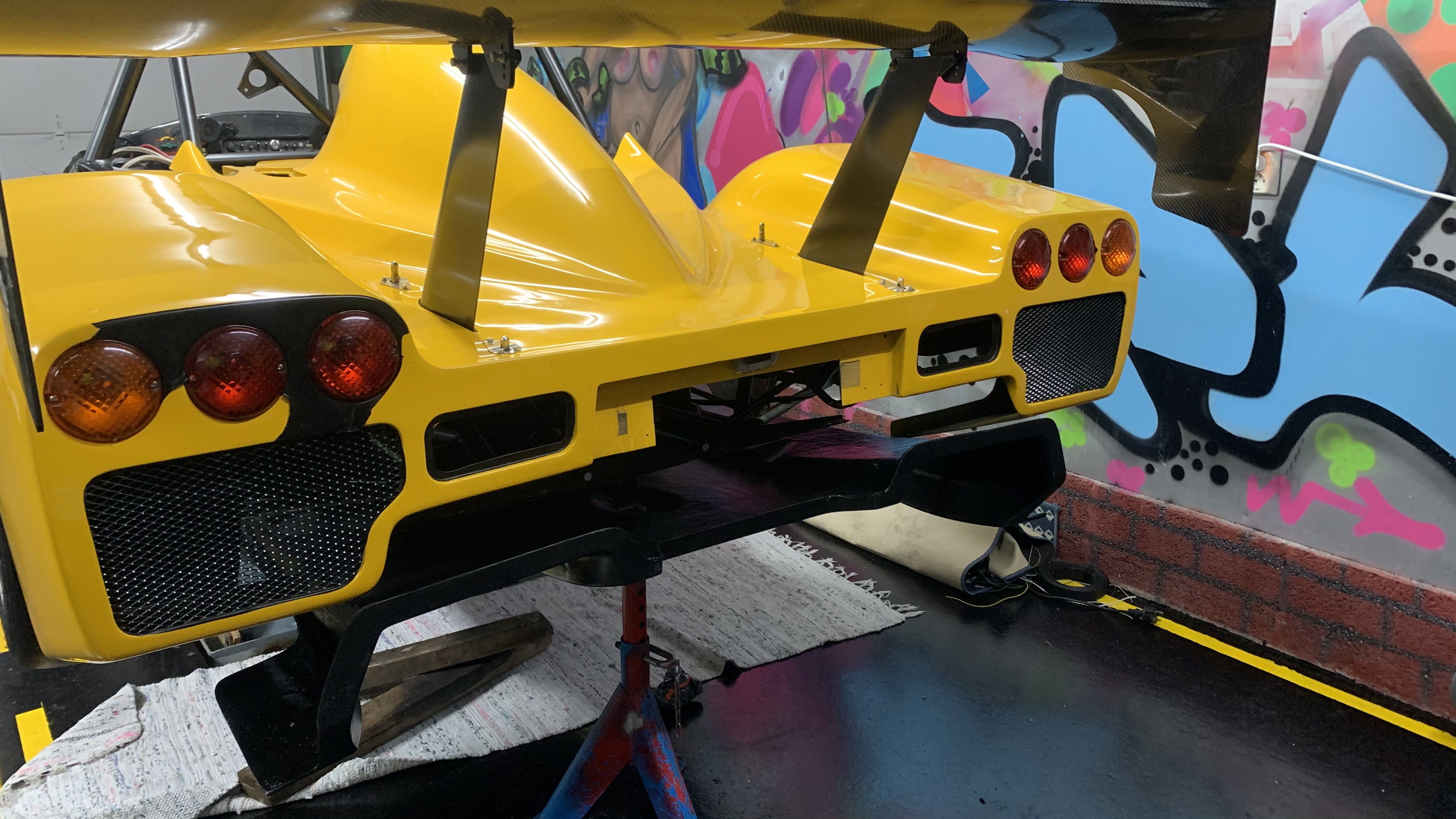

Fitting rsx diffusor to the tracksport body, made by carbon composites in uk! Really good finnish and fitment on it!
Looks great!
