Hi friends,

at the moment in my SR3 No.74 there is the original Radical Dash and a PiSystem (now Cosworth) mounted.

My car is running with a MBE ECU without FI so i guess the only signal i can get from the ECU is the Revs. Everything else i have to receive with analogue channels.

I would like to receive Oilpressure, Oiltemperature, Watertemperature and Revs. I have a AIM system here with GS-Dash, evo4s, Smartycam HD GP etc. which i would like to build into the car instead of the PiSystem.

My idea is to use the signals which go to the original Radical Dash. But i cannot find any information about the wiring of the connector. Do you think it is possible that way? Does anybody have the nesseccary information about the wiring of the dash connector? If this is not possible, can i use the wiring loom of the PiSystem?

BTW AIM Germany recommended me to put their sensors in the car, that would be the easiest way. That would be the last resort for me! Maybe i am a bit stubborn with this 😉

Thank you in advance!

Markus

A2C8B69E 1D58 449C A1AD 46CA967BDA3A
D622A0C2 5310 4494 AE7C C368A10ED10B
EE85C98D 0C9A 4312 8E21 FD90D52DCA3B


Quote
John Parsons
(@parsonsj)
Prominent Member
Joined: 5 years ago
Posts: 626


Markus, in theory what you want to do should work fine. I know how you feel, my 2007 SR8 was similar in that I had two sensors for everything: one for the ECU and one for the AiM dash. It was a mess!

I have some old pinouts -- maybe it will be what you need. I'll have to search for it.  🙁





ReplyQuote
John Parsons
(@parsonsj)
Prominent Member
Joined: 5 years ago
Posts: 626


Markus,

I found two files that might be useful for you. One is an old word document about the SR8 wiring loom, which might have some information about the dash connector, and the other is Radical to AIM adapter cable, in pdf file format. If you've an email address, I'll send them to you.



ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822

Posted by: John Parsons

Markus,

I found two files that might be useful for you. One is an old word document about the SR8 wiring loom, which might have some information about the dash connector, and the other is Radical to AIM adapter cable, in pdf file format. If you've an email address, I'll send them to you.

John, please send me a copy also (CharleyH@RadicalSportscarRegistry.com)

Thanks,

Charley



ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822


Markus, here are a few images that might help.  I highlighted the wiring runs from the dash connector and made a listing of what each pin in the plug goes to.  This is from the wiring for the MBE / Fuel Injected cars, but it is quite possible that this part of the wiring diagram is unchanged from your car.

Charley

SR3 Dash plug wiring MBE w FI
SR3 Dash plug details MBE w FI


ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

Hi John, sorry for my late reply.

My email address is MZunker@me.com

Thank you very much for helping me out with this!

Cheers

Markus



ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

Hi Charley,

thank you very much for your help, i found your original wiring diagram already but your color highlights make it much easier for me, i really appreciate your effort.

Cheers

Markus

P.S. i was in contact with James Scott from Radical regarding my problem. He recommended to change the temperature and pressure sensors to AIM sensors because the sensors connected to the dash are only single wired sensors which are much less accurate than the AIM sensors. So i guess i will change the 3 sensors and try only to read the REVs and the Gear from the Dash Connector.



ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822

Posted by: Markus Zunker

Hi Charley,

thank you very much for your help, i found your original wiring diagram already but your color highlights make it much easier for me, i really appreciate your effort.

Cheers

Markus

P.S. i was in contact with James Scott from Radical regarding my problem. He recommended to change the temperature and pressure sensors to AIM sensors because the sensors connected to the dash are only single wired sensors which are much less accurate than the AIM sensors. So i guess i will change the 3 sensors and try only to read the REVs and the Gear from the Dash Connector.

You can’t get a better source for Radical information than James!



ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

The PiSystem is now taken out of the car. Now the real fun can begin.



D50BF59E 9352 4291 B974 BC41D055DE88


ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822


Wow, is that the full harness for the car?  It looks like more than the Pi harness.





ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

This is only the wiring harness of the PiSystem.



ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

Here a short update for you guys:

To be honest the installation of the new sensors was much easier than taking out the old wiring harness oft the PiSystem. I installed 2 new temperature sensors for water and oil, a new oil pressure sensor, one cable for the gears and one cable for the revs.

I was able to test the system today and "tada" everything works, except the gear sensor is not yet configured. I am really happy with the result so far.

Now i am 3D printing a holder for the GS-Dash so i can have it directly mounted to the steering wheel. I will add some pictures tomorrow.

Here a picture of the GS-Dash holder in the making:

880604AE 0125 4800 9FF8 92702DBDC22D

Job nearly done:

5DD37B27 6777 49D0 B3D7 FEE86D1DD229
ED17906D BF71 462D 8F4C 8C578D4CCC36
1E56C34E F6CE 49CB A3C4 DB985ABFA41D

Finished:

3EDA9AD7 F6AB 4553 B464 81CEF32FB947
48A3EC01 6CE0 4266 B250 FB5C5640357E

If somebody wants to use the same setup I can share the stl file.



ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822


Great progress!  I’m looking forward to seeing the pictures.



Charley



ReplyQuote
Markus Zunker
(@performer66)
Eminent Member
Joined: 5 years ago
Posts: 24
Topic starter

Hi Charley,

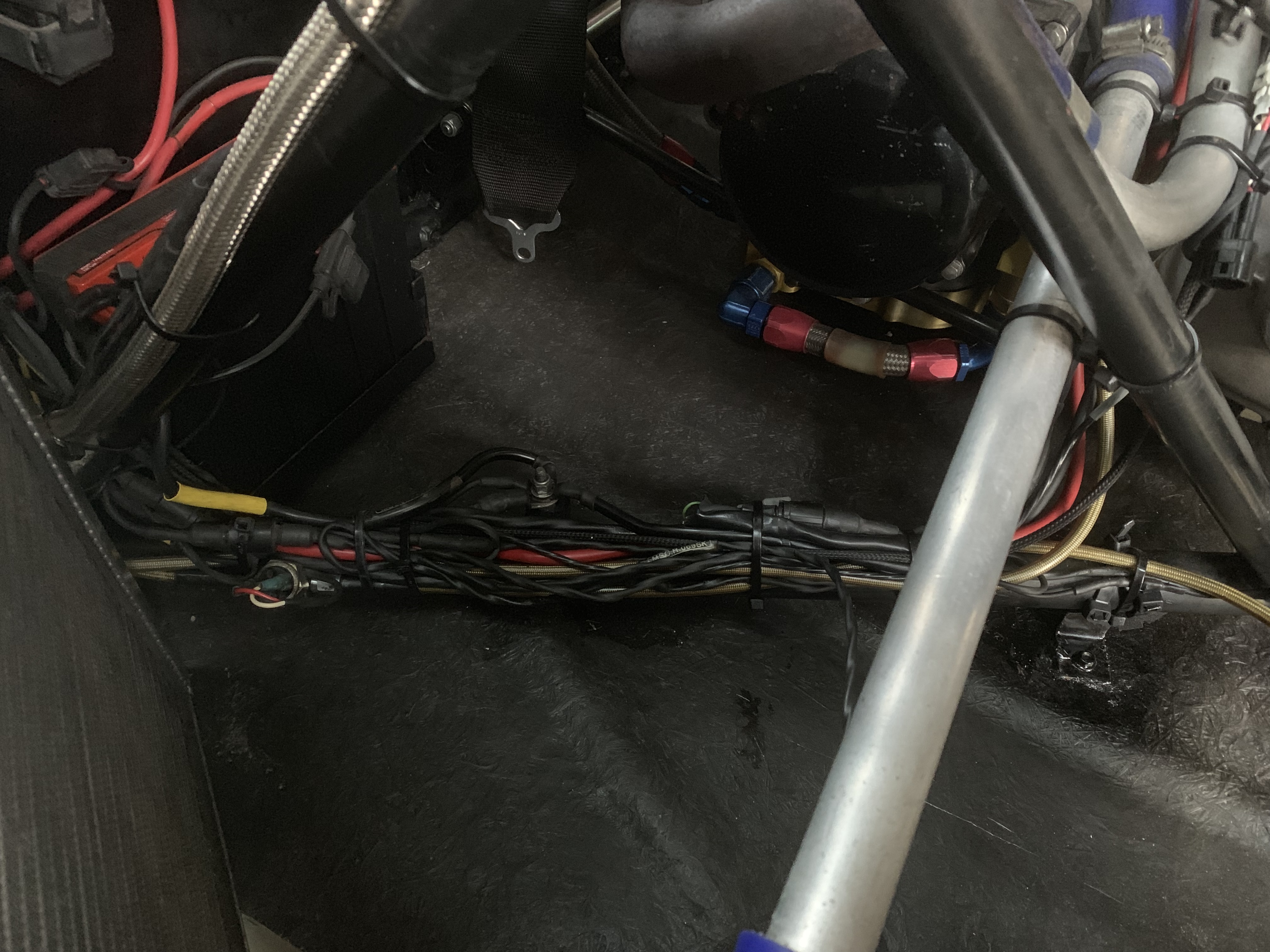

all the wiring is done, all sensors are working except the gear sensor, there i still have to tinker around a little bit.

Here some picture as promised:

E96AE907 2704 496A 9992 D01631063851
5A338BD0 64BA 4BFB AE33 6FF182332C4F
C674D0BC E500 49A0 B5FB 86CB0BBECBEF
751D035D DBF7 437C 961B 8FDFCE24D31E
1E232213 0BC3 4EDE 822F A395AE804595
23E06752 AC86 43B4 997E F5AC5BC68394
1B2C53CD F196 448D 916F 2C05FBC29D0A
29645AA2 960D 4DA7 B6DD F8AE60C86852
AA95C2B2 1248 48A2 B9BE D09A426456CC
209B8FC0 C84D 4C17 892C 382066CE2D08
0EEC92CC 3A86 4353 B5B7 8B60AE51A773
D37280BF E0FA 42B7 BDCB 36B65DD147EB
D1302C0E 15A0 4339 8F45 BBC67EF48A44


CharleyH reacted
ReplyQuote
Mark W
(@gobble)
Trusted Member
Joined: 4 years ago
Posts: 65


Where did you grab the rpm signal? Did you tap into pins 2 and 15 of the white plastic plug?
