So after this we can send our motors to you for a rebuild right :-)


ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

@crit

all I can say is that, the cost that a reputable shops charges, they are NOT getting rich!

this is more about personal  knowledge in the lump that sits behind me, (and I have a friend in the Suzuki business)



ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

Clutch photos and crank balancer

4811B909 7CD7 424F B18B 675AE74F751C
2BF943C9 8F63 4C55 938F 4393BFF307B4
91FBF1D0 FE9D 4479 B4E3 074E1ED1664F

Dry sump shots, with the SBD system you have to modify a Cometic gasket, the oil pick up fitting is adjustable in height

2DB33222 17BC 46DC B24E 290A930AF6E5
2FDA76D6 E7BC 493B A133 D8053B7530AB



home made rotor holder, since it is torqued to 87 ft/lbs! It’s hard to hold

3B7A0F1A 647B 4805 AAEB D84C87B699AD



I am putting a sensor in the oil plug to measure the oil temp coming out of the engine

C549E752 7307 47BD AFFC E960410F4975



I have all the new SS valves and new gen1 springs ready to install in the head, my machine shop said to just lap the new valve with 600 grit, since the seats looked great. I did and they lined up perfect.



CharleyH reacted
ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Famed Member Admin
Joined: 6 years ago
Posts: 1822


Your making great progress!  This looks like a really fun project!



ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

@charleyhradicalsportscarregistry-com

I wouldn't call it great progress, as it has been very slow. But that's my fault.

I have to give a huge shout out to Dan at RLM Engines (@rlm-dan) for his support with parts and advice.





CharleyH reacted
ReplyQuote
John Parsons
(@parsonsj)
Prominent Member
Joined: 5 years ago
Posts: 626


@rlm-dan Dan is the man!!!

Nice work gentlemen.



CharleyH reacted
ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

More photos of the dry sump

FA11EDDB 5418 4526 9862 A07A0BF728B5
BCB98D34 5108 4FA2 904A B23B4A0668F1
D707F12C A7F0 42CF A7CE A4D987EC9614

i had to fabricate clutch slave spacers and push rod since the SBD pump is slightly larger than the Radical pump, which I think is supplied by Nova Racing.
all in all, I had to extend everything out 15mm from the wet sump configuration. I still need to harden/temper the pushrod.

7DA80851 385E 4474 AF61 E77BECC7D740
AFF38209 F7D3 4587 988B 6EBC0227866F
4555189F F1F4 4028 AE63 FDB63AB9625D
2A9E965F 2C55 4A11 A8FC 86AF4BA69B8B


ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

Getting closer, just adding some more pictures.

valve lash was adjusted with all the shims changed.

E6350C92 3A4B 456A 8238 0CAA425FFEAB
6D014B89 0A0E 4C53 BE1B CFD6B4DF0F31
DAA4E8C9 583E 4952 886E 87C882F23326
36E67569 B6A2 404B 9BB4 DE9FBF9E70B5

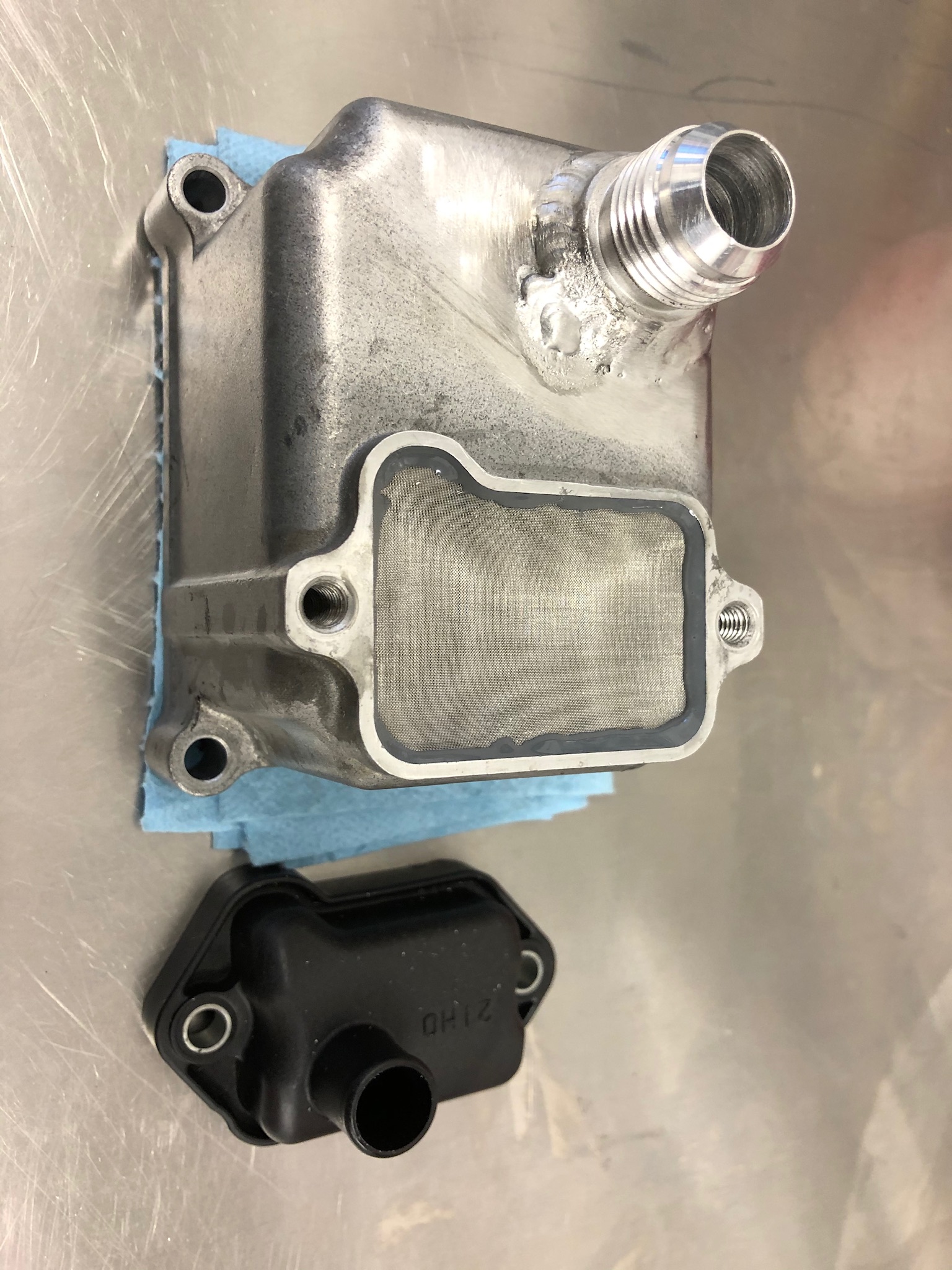

here is my breather, I epoxied in two layers of very fine mesh in place of the flapper valve.  This should prevent any abrasive from getting in via the breather.

26218698 6127 4813 B702 A544E5350D96


CharleyH reacted
ReplyQuote
Dan Phillips
(@rlm-dan)
Reputable Member
Joined: 5 years ago
Posts: 262


Thanks for the words guys!

Great to see you are making progress and getting there!



ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

Since we are hunkering down, I thought I would share some photos of my progress of the conversation to a dry sump system.  I abandoned the idea of a local company’s dry sump tank, since it didn’t fit with the exhaust installed.  the OEM tank is also very close, but it fits.

hope everyone stays healthy,

B2530621 AB45 4655 A3E0 3D149DF94AA1
B08B65F6 053A 4AEA 8504 858E7FA726BA
485C114D BAF4 4D89 A8F8 009ECEE3C365
C4EBC3F3 FC46 4FC6 B6C7 AA091B86D838
D3B4F78A 8907 424F 9713 3E1C4FC8B4D5
5946D972 3CF7 4D1F A631 7E13A92718F9
FB135511 8C77 418E A431 1B8881E399A1
2DC70BA4 781B 4953 B649 8C4A42D046D7
2BD8EB02 5BAF 469B 9F75 4AF5CABB8DBF
7B8DFA41 0401 4C58 B6A2 A3963704C67B


ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

Thanks for the “Likes” guys,

The company I’m getting my oil hose from is closed until mid April. But I’m okay with that, because there are bigger things to consider.



ReplyQuote
Dan Phillips
(@rlm-dan)
Reputable Member
Joined: 5 years ago
Posts: 262


How are you getting on Graeme?



ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

Because of Covid-19, I have not started the engine yet. I can’t get my oil lines crimped. I bought Brown & Miller hose and fittings mid February, took everything home to fit and set the length. Got that done, then all the shops that can crimp them had to close. They are still closed.

All the circuits are still closed, and I don’t thinks we will be racing anytime soon. But that’s okay, it will happen at some time.

I hope you and your family are healthy, and stay that way. In the end that is what really matters.



CharleyH reacted
ReplyQuote
GraemeD
(@graemed)
Reputable Member
Joined: 6 years ago
Posts: 220
Topic starter

It’s Alive!



I finally got all my hoses built, filled it with oil and gave it a garage start. The new electric water pump worked fine.

here is the final piece of the hose puzzle.

E3D15A84 4B18 4CF0 9D71 57A479DE7604



more to come as I get this on track.



CharleyH reacted
ReplyQuote
Stephen Davidson
(@stephen)
Trusted Member
Joined: 5 years ago
Posts: 76


Well done chap!



ReplyQuote
