Okay, I've got all my parts on order, my GDU has been rebuilt and I should be starting the reassembly next week.

As I was getting organized on my workbench, I moved my clutch assembly off the one side but as I grabbed it I noticed the last disc was actually cracked. I have absolutely no idea how this happened as when I took it out I brought it over to where it's at until I moved it getting organized.

I don't particularly want to buy a whole new clutch as this one was working very well. I have never owned a motorcycle before so I don't have enough knowledge if I can replace just one disc? It is the very outside disc as you can see in the picture at approximately the 5:00 position.

Can I replace just one?

PXL 20220729 025546673





ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

And it begins 🙂

PXL 20220730 135352707





ReplyQuote
Rich Kenworthy
(@rich)
Eminent Member
Joined: 2 years ago
Posts: 29


@meatman the technical control seal in your picture has been tampered with. The wire has been fed through the (wrong) closed end.

Regarding your clutch question, I would advise replacing the plates as a pack (1 broke, why risk it). A cost effective OEM kit is available but the springs are not to Radical spec.

Looking at your Gen 1 gearbox, I hope you have a service manual on hand for plate and circlip direction (orientation to load) torque specs etc.

Best of luck with your project, Rich



ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter
Posted by: @rich



Looking at your Gen 1 gearbox, I hope you have a service manual on hand for plate and circlip direction (orientation to load) torque specs etc.

Best of luck with your project, Rich

I do have a shop manual. 👍



John Parsons reacted
ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

Conversation pcs for the wall of shame.

PXL 20220804 043202293
PXL 20220804 043208310


azwcat, CharleyH, Clark Darrah and 1 people reacted
ReplyQuote
CharleyH
(@charleyhradicalsportscarregistry-com)
Noble Member Admin
Joined: 4 years ago
Posts: 1656


@meatman, Ouch!



ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter
Posted by: @charleyhradicalsportscarregistry-com

@meatman, Ouch!

Yah, you could even say that in capitals! lol



John Parsons reacted
ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

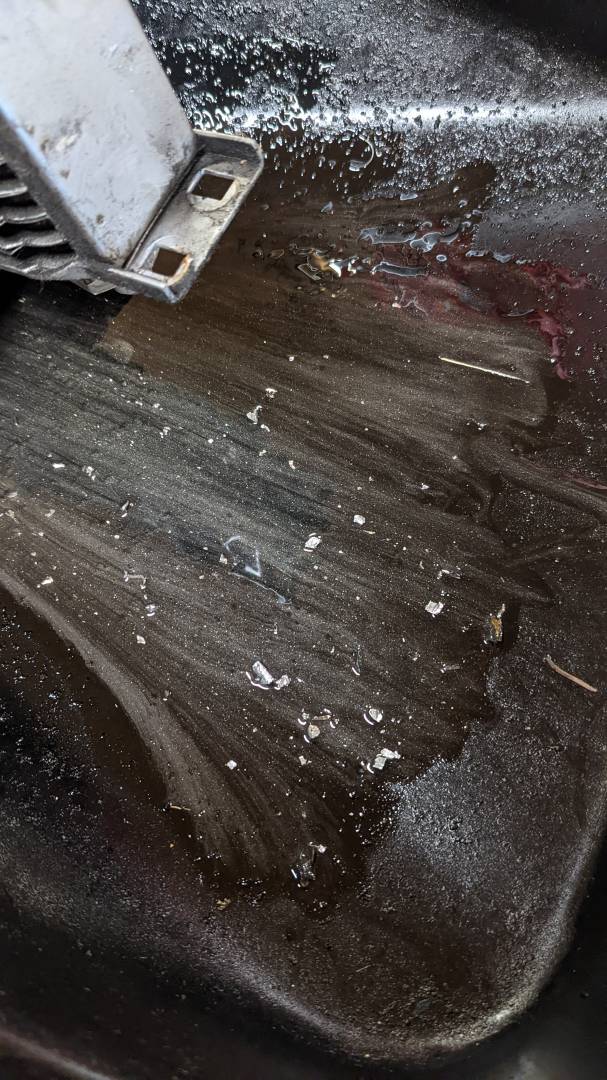

Yup, good think I replaced the gdu oil cooler....

Good sized chucks coming out of it.

PXL 20220806 030052866
PXL 20220806 030048027


CharleyH reacted
ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

Almost ready to drop the engine and GDU backing, something I noticed during the dismantling process is that I was missing a few bolts (see pictures)



I wonder where I would be able to get some of these? Anybody have any spares? 🙂

PXL 20220822 022047605~2


ReplyQuote
Dan Phillips
(@rlm-dan)
Reputable Member
Joined: 4 years ago
Posts: 229


@meatman

Your clutch slave cylinder mounts through those bolt holes.

Noted that there is no output shaft seal there (plus spacer)? It gets clamped between the crankcases so needs to go in before the cases go together.



CharleyH reacted
ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

@rlm-dan The seal is installed now and thanks for the tip. I suppose I would have found that out eventually eh!



Dan Phillips reacted
ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

Hopefully I get a quick response tonight on this question...



I am installing the clutch and notice the spring washer and the spring washer seat were not installed when I dismantled it. As far as I can discern they are used to lessen clutch chatter.



I don't care about chatter and was wondering if it's okay to not use them? Is this deleted in a radical setup normally anyways?



Screenshot 20220826 201159


ReplyQuote
Dan Phillips
(@rlm-dan)
Reputable Member
Joined: 4 years ago
Posts: 229


Early Busa's (99-01) didn't have these washers fitted as standard but everything else did. Radical leave them in everything and fit them to engines without them to assist.

Having said that you should be fine without them and the clutch will work fine without them.

If you suffer any problems with juddering/grabbing and general clutch behaviour then they would be the first thing I would look to fit.



ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

Thanks Dan! That's what I needed to hear!





ReplyQuote
Josh Spray
(@meatman)
Estimable Member
Joined: 2 years ago
Posts: 155
Topic starter

Anybody have suggestions on how to tighten the sprocket (output shaft) nut?



I know it's supposed to be 105 ft/lbs but the shaft spins even in gear.



ReplyQuote
